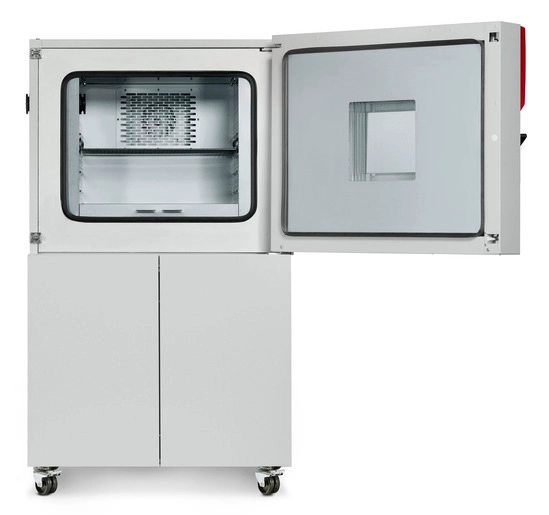

Model MK 115 | Dynamic climate chambers for rapid temperature changes

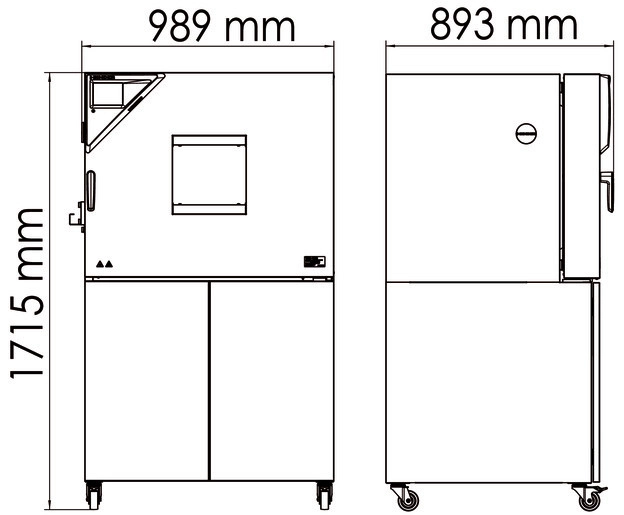

Model MK 115 | Dynamic climate chambers for rapid temperature changes - Image 2

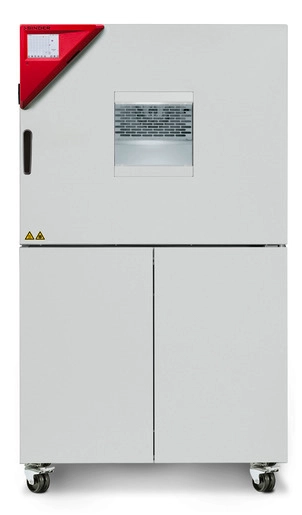

Model MK 115 | Dynamic climate chambers for rapid temperature changes - Image 3

Model MK 115 | Dynamic climate chambers for rapid temperature changes

Benefits

  • Homogeneous climate conditions thanks to APT.line™ technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

PRODUCT DESCRIPTION

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

Categories: , , , , , , , , ,

Description

IMPORTANT CHARACTERISTICS

  • Temperature range:-40 °C to +180 °C

  • APT.line™ preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM™ Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug, 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes

  • Computer interface: Ethernet

  • 230 V power socket on the right-side control panel
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit
