Description
Standard Version:
Reactor volume: 100 – 600 ml
Pressure: -1 (FV) to +400 bar
Temperature: -20 °C to 400 °C
Material: stainless steel, (Hastelloy +400 °C)
High Pressure Version:
Reactor volume: 100 – 600 ml
Pressure: -1 (FV) to +500 bar
Temperature: -20 °C to 500 °C
Material: stainless steel, (Hastelloy +400 °C)

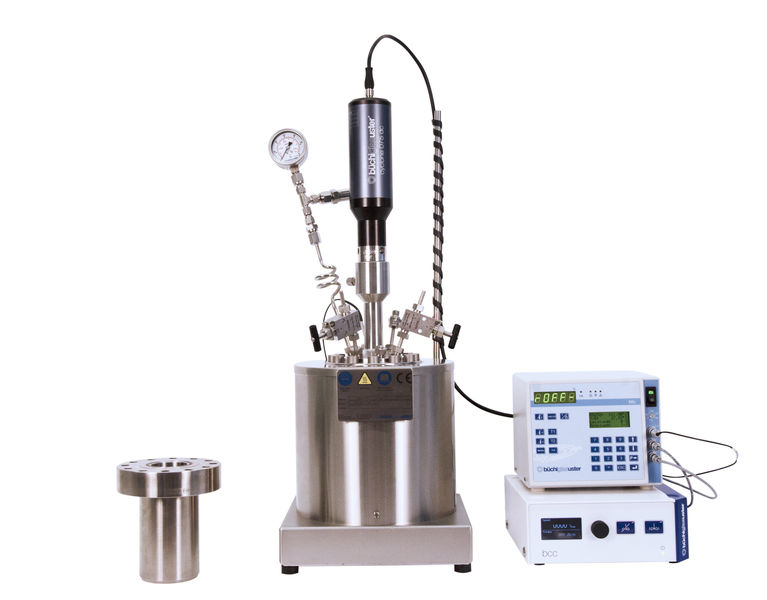

New high pressure and high temperature autoclave novoclave. This high pressure reactor system is designed for processes involving high pressures and temperatures. Safety features guarantee safe reactions under highest pressure. Designed, manufactured, and tested according to PED, AD2000. Electrical heating with built-in automated tap water cooling for fast and precise temperature control and programmable PID controller for operation at device or via PC.
The modular setup of the novoclave system allows for changing the vessel size from 100 ml up to 600 ml using the same cover plate and electric heating block. Vessels are available in the following volumes: 100 / 200 / 300 / 450 / 600 ml. Despite changing vessel sizes, the optimal vessel geometry (i.e. relation between diameter and length) is maintained.
The stainless steel or Hastelloy reactors ensure high corrosion resistance. The magnetic stirrer drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer.
